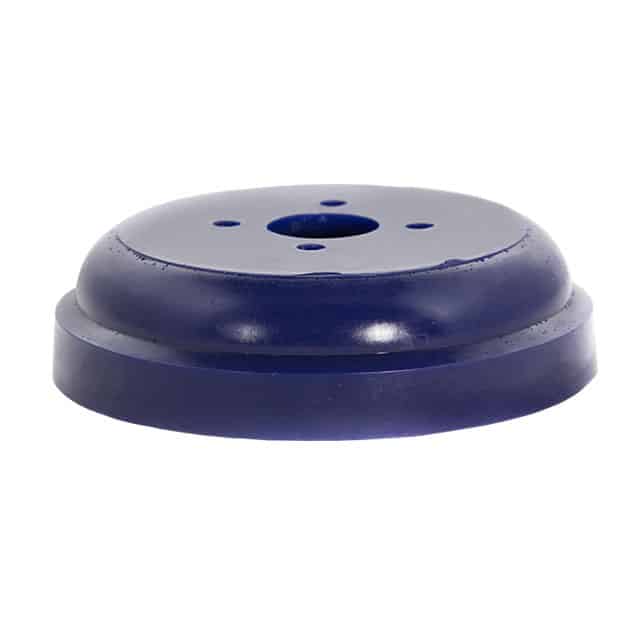

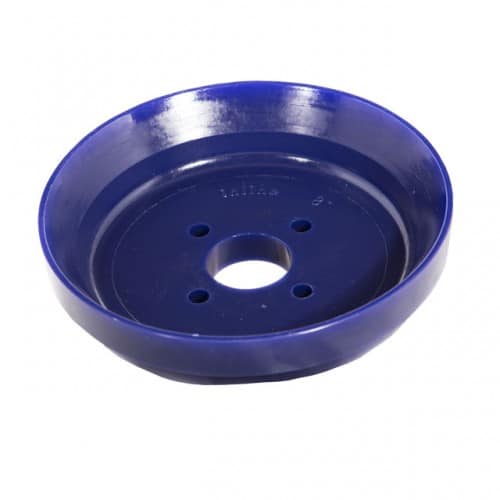

Inline Service’s DC Cup is designed for maximum scraping. They are ideal for removing paraffin, asphaltines, black powder and other substances that adhere to the pipe wall.

Superior load bearing and sealing characteristics make them ideal for removing liquids from pipelines and separating dissimilar products.



DC CUP

SIZEI.D. (in.)WEIGHT (lbs.)PART NO.
6"1.751.5091301406
8"1.752.0091301408
10"3.6253.5091301410
12"4.255.5091301412
14"4.259.0091301414
16"6.7511.0091301416
18"7.0012.0091301418
20"11.0019.0091301420
22"11.0023.0091301422
24"13.2530.0091301424
26"13.2534.0091301426
28"14.5040.0091301428
30"16.5058.5091301430
32"16.5066.0091301432
34"16.5070.0091301434
36"22.5078.0091301436
38"22.50---91301438
40"22.50---91301440
42"24.50117.0091301442
48"32.50140.0091301448



Download the DC Cup Datasheet
