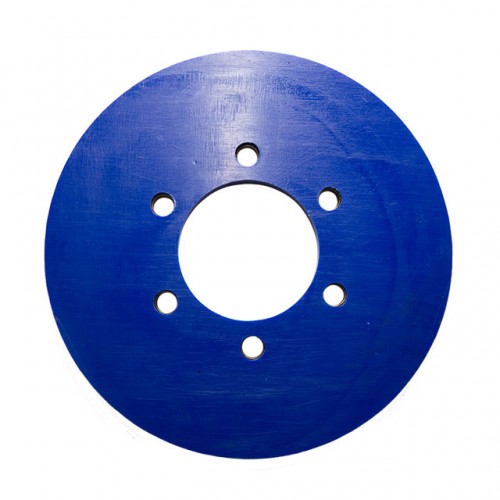

Inline Service’s Seal Disc is used as a sealant to align the O.D. of the pig with the I.D. of the pipeline. This disc helps to scrape out unwanted material.
The Seal Disc can be used on any mandrel pig and is available for all pipe diameters. This disc is made from Inline’s MAXITHANE™, a high performance urethane material, which makes this product very durable.
SEAL DISC
| SIZE | WEIGHT | O.D. | PART NO. |
|---|---|---|---|
| 6" | 0.50 | 6.375 | 91310406 |
| 8" | 1.50 | 8.375 | 91310408 |
| 10" | 2.50 | 10.50 | 91310410 |
| 12" | 2.50 | 12.50 | 91310412 |
| 14" | 4.50 | 14.00 | 91310414 |
| 16" | 6.00 | 16.00 | 91310416 |
| 18" | 7.50 | 18.00 | 91310418 |
| 20" | 10.00 | 20.00 | 91310420 |
| 22" | 13.00 | 22.00 | 91310422 |
| 24" | 14.50 | 24.00 | 91310424 |
| 26" | 18.00 | 26.00 | 91310426 |
| 28" | 23.00 | 28.00 | 91310428 |
| 30" | 28.00 | 30.00 | 91310430 |
| 32" | 33.50 | 32.00 | 91310432 |
| 34" | 37.00 | 34.00 | 91310434 |
| 36" | 39.50 | 36.00 | 91310436 |
| 38" | 41.50 | 38.00 | 91310438 |
| 40" | 53.00 | 40.00 | 91310440 |
| 42" | 58.50 | 42.00 | 91310442 |
| 48" | 66.00 | 48.00 | 91310448 |
