Apache pigPRO™ Intrusive Passage Indicators

Apache pigPRO Labor Day Sale

Inline Services is proud to be the exclusive U.S. distributor of the Apache pigPRO™

The Apache pigPRO series of intrusive pig passage indicators provides accurate and reliable detection of pipeline pigs. Featuring a patented fluid seal design and high quality of Canadian workmanship,  pigPROs™ are depended upon by pipeline operators worldwide.

The pigPRO provides a dependable signal of a pig pass using a visual, electrical or combination signal. Not sure which is best for you and your project?

Let us know how we can help!

Features

  • Rugged, Tough Design for harsh applications
  • Stainless Steel internal parts saturated with durable corrosion resistant coating
  • rugged units are constructed of stainless steel internal parts impregnated with a durable corrosion resistant coating.
  • Bi-directional activation
  • On-stream installation/removal capability
  • Plunger sensitivity/penetration adjustments.
  • Unique patented fluid seal design does not allow paraffin or other objects to obstruct the operational mechanisms
  • Hemispherical plunger eliminates the need for Operator to align the device
  • Fluorocarbon “O” rings

Options

  • Visual and/or Electrical indication
  • Automatic Reset
  • Explosion Proof available
  • Visual Flag/manual reset

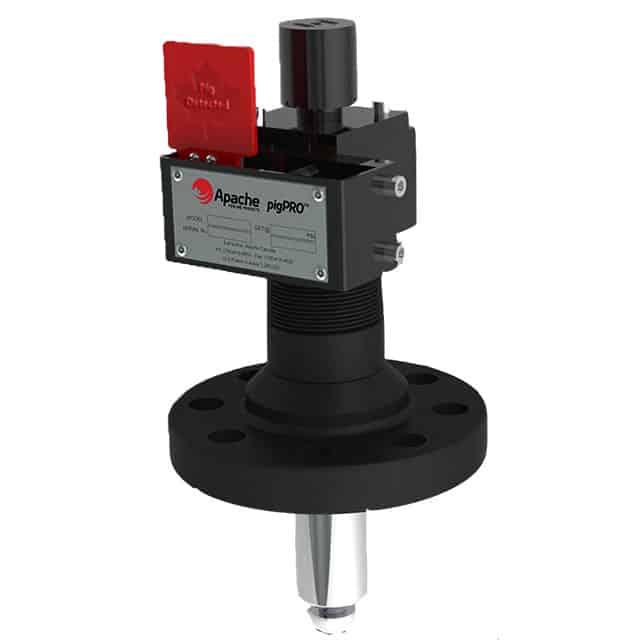

  • Flange Mount – Flange base models are manufactured to mount to existing flanged connections and are available in class 150, 300, 600 or 900 ANSI flanges; Conversion kits are also available which enable installation onto the mountings of other manufacturers

pigPRO™ is a trademark of Apache Pipeline Products and protected by U.S. patent 5263220

Apache pigPRO™ Models:

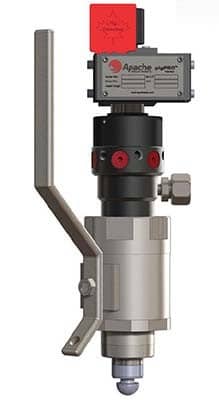

Apache pigPRO™ Series 67
Apache pigPRO Series 67

  • Detects precise pig location during a run
  • Visual flag indicator with manual reset
  • Customized ball valve allows for safe isolation of indicator for pipeline pressure inspection, maintenance or repair
  • Includes a thread mounting nipple, isolation extended lower housing, fluorocarbon O-Rings, and hemisphereical plunger with flag assembly

Learn More About Series 67

Apache pigPRO™ Series 57

  • Visual flag indicator with manual reset
  • Most popular pigPRO model
  • Includes a thread mounting nipple, standard lower housing with fluorocarbon O-Rings and a hemispherical plunger with a flag assembly

Learn More About Series 57

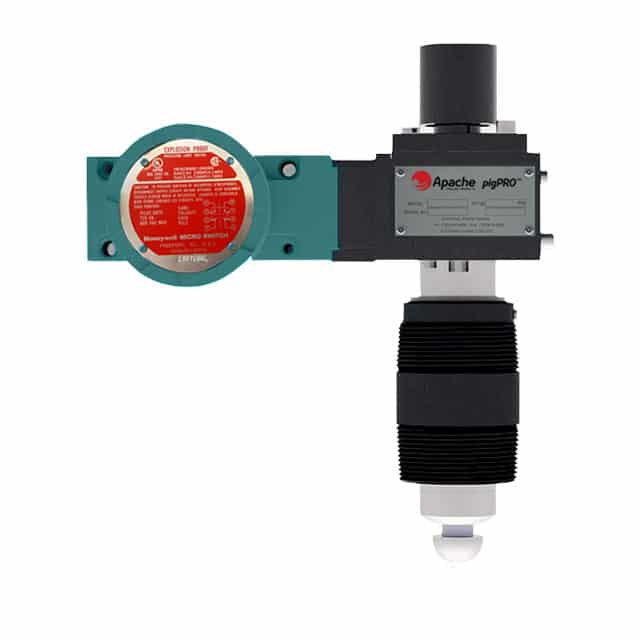

Apache pigPRO™ Series 55

  • Electrical Indicator with automatic reset
  • Includes a thread mounting nipple, standard lower housing with fluorocarbon O-Rings, hemispherical plunger and weather sealed & explosion proof limit switch. The switch employed on this model is NEMA rated, UL listed and CSA certified to suit most applications

Learn More About Series 55

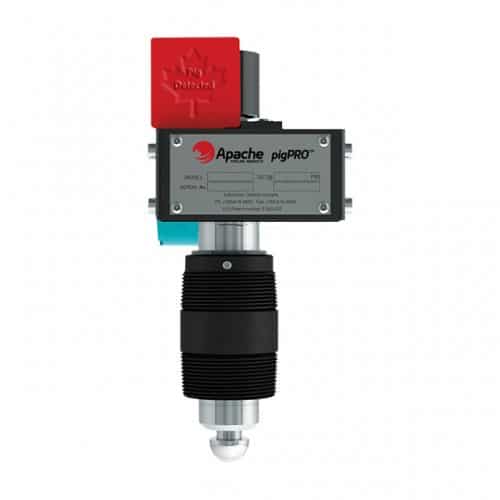

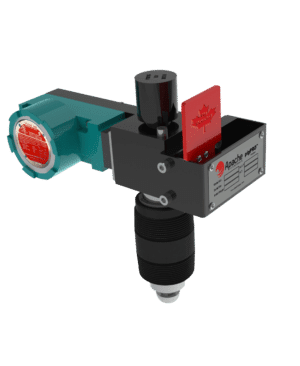

Apache pigPRO™ Series 53

  • Combined visual/electrical indicator with manual/automatic reset
  • Includes a thread mounting nipple, standard lower housing with fluorocarbon O-Rings, a hemispherical plunger with a flag assembly, and weather sealed & explosion proof limit switch. The switch employed on this model is NEMA rated, UL listed and CSA certified to suit most applications

Learn More About Series 53

Download the pigPRO Installation Guide

Download the pigPRO Flange Installation Guide

pigPRO™ Removal Under Pressure
