Geophone Kit

Geophone Kit

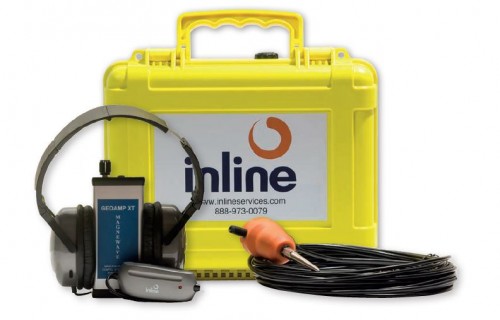

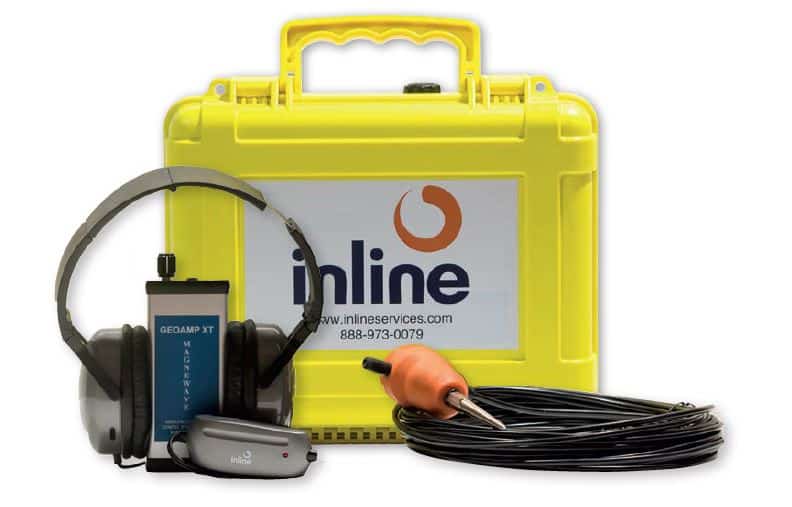

Inline’s Geophone Kit gives you the convenience of having everything you need to track a pig in one convenient kit.  The kit includes:

  • Geoamp XT Geophone
  • Spike Probe
  • 50’ Cable
  • 6′ Sterio audio cable for vehicle audio hook-up
  • Noise Reducing Headphones
  • Shock resistant Carry Case

All of the above comes packaged in a heavy duty carry case that is appropriate for industrial use.

The geophone allows a listener to hear extremely low sounds from great distances using the high-tech ground probe.  The probe will amplify the sound from an approaching pig from miles away in order to help indicate where exactly the pig is striking the pipeline welds.

REQUEST A QUOTE

  • Super Sensitive Geophone: allows adjustable gain and excellent noise reduction and filtering. Can be used with headphones or plugged into vehicle radio/amplifier input for full speaker output.
  • Portable & Long Life Capability: with 4 AAA-cell operation allows over 6 months of continuous operation. The Geophone back plate can be simply pulled to allow quick change-out of batteries.
  • High Impact Protection Carry Case: to carry complete Geoamp set with geo probe and 50’ cable, headphones and 6‘ vehicle cable.
  • Extensive Field Testing: to ensure optimization of incorporated technology and exceptional operational performance.

  • 6 months continuous operation
  • Operational Temperature = -15 degrees C to +30 degrees C (-5 deg. F to +86
    deg. F)
  • Operational Voltage = 6.0 Volts: 4 AAA Cell Alkaline batteries
  • Dimentions = 5.90″ Width x 2.2″ Length x 1.0″ Height
  • Weight = 7 oz. (batteries included)
