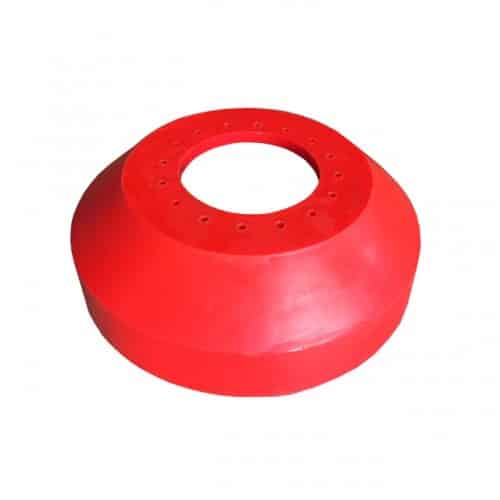

The Inline Conical Cup has the flexibility to pass through pipelines with changes in the inside diameter of up to 20 %.  It will  keep its seal in out-of-round pipe and has the capability to keep its seal in long runs. Inline’s Conical Cup can be made to fit most metal mandrel bodies.



CONICAL CUP

SIZEPART NO.
4"91503404
6"91503406
8"91503408
10"91503410
12"91503412
14"91503414
16"91503416
18"91503418
20"91503420
22"91503422
24"91503424
26"91503426
28"91503428
30"91503430
32"91503432
34"91503434
36"91503436
40"91503440
42"91503442
48"91503448

Conical Cup
