Uni-Flex® Pig

Uni-Flex® Pig

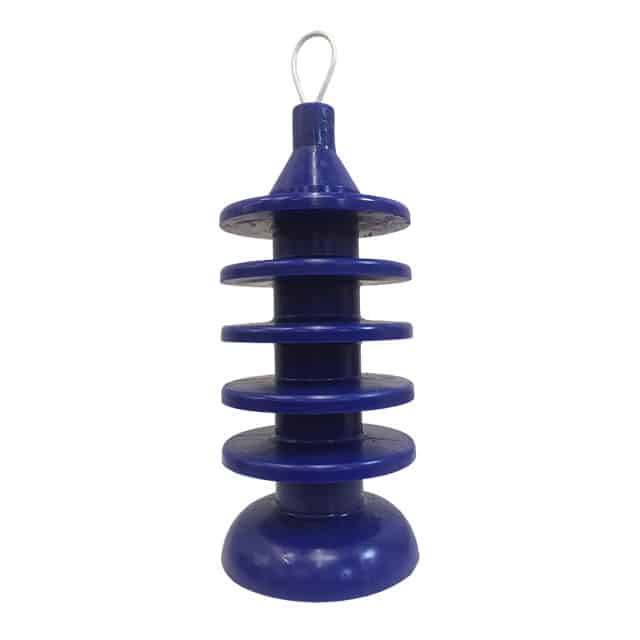

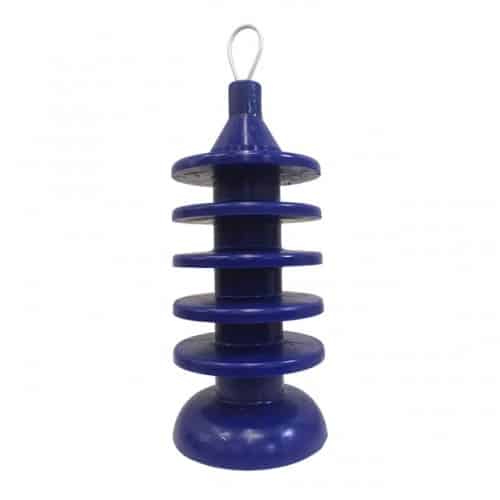

The solid polyurethane Uni-Flex™ Pig is cast as a single piece construction. The flexible combination of discs and a single cup creates an effective pig for removing liquids from wet gas systems, water from product pipelines, and paraffin from the walls of crude oil pipelines.

Manufactured from MAXITHANE™, Inline’s high performance polyurethane, this pig can flex through varying diameter pipelines, short radius weld ells, tees, valves, dents and out-of-round pipe. Its hollow core allows the pig to expand in diameter thereby increasing its seal as the differential pressure across the pig increases and to center itself for even wear.


– Sizes 2″ – 20″

– Single cup with multiple discs

– Superior sealing and support

– Handling rope

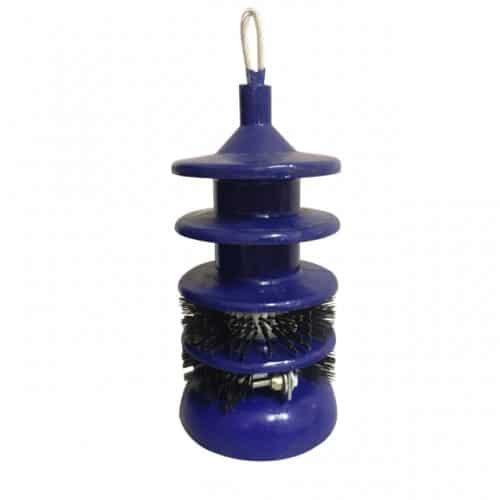

– Wrap brushes

– Transmitter housing

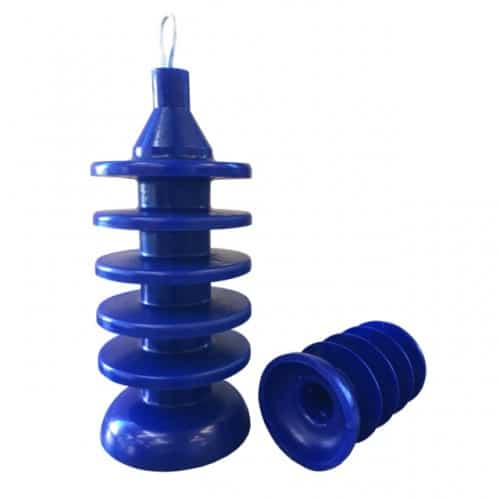

– Available with a second conical cup – see Uni-Flex 2C Pig


Download the Uni-Flex Datasheet
